Scion-Tech Ltd

Digital Video Distribution

+44 (0) 1635 862484

Specifications


Input Connectivity

Signal: 8 x HDMI Type A, 19-Pin Female

Power: DC Jack Socket


Output Connectivity

Signal: 8 x HDMI Type A, 19-Pin Female

Digital Audio: 8 x RCA Socket (Coax)

Analogue Audio: 8 x 3.5mm stereo Jack Socket


Signal Connectivity

RS232: 1 x 3-Pin Phoenix Terminal

Ethernet: 1 x RJ45 Data Socket

IR: 1 x 3.5mm Jack Socket (IR Extender Cable)


Signal

Signal Input: HDMI

Standards: HDMI 2.0b, HDCP 1.X / 2.2

Bandwidth: 18Gbps

Video Resolutions: 4K@50/60Hz (YCbCr 4:4:4), 4K@30Hz.

Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Colour Depth: 8-bit, 10-bit, 12-bit (1080p/60Hz), 8-Bit (4K/60Hz YUV 4:4:4), 8-bit, 10-bit, 12-bit (4K/60Hz YCbCr 4:2:2 / 4:2:0)

Audio: PCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD



Power (main unit)

Type: AC to DC Mains Adaptor

Input: 100~240V AC 50/60Hz

Output: 12V/5A DC

Consumption: 43 Watts


Environment

Operating Temperature: -0° to 40°C

Operating Humidity: 5 to 90% RH (no condensation)

Dimensions: (W) 440 x (D) 200 x (H) 44

Weight: 2.8g

Colour: Black


Cable Connection Lengths

HDMI Input: 3m@4K/60, 10m@4K/30, 15m@1080p/60


The use of “Premium High Speed HDMI” Cables is recommend

Contents


1 x Main Unit (SC04.MX88)

1 x IR Remote Control

1 x IR External Cable

1 x RS232 Cable

1 x Mains Adaptors 12V/5A

2 x Mounting Ears

1 x Manual

Description


The SC04.MX88 switches any 8 HDMI inputs to any 8 HDMI outputs at resolutions up to 4K@60Hz. This professional matrix switch offers infra-red,front panel, RS232 and Ethernet TCP/IP control, making it perfect for any scenario where you are sharing 8 sources with 8 displays.

The front panel LED display makes it easy to see which input is currently active at any given time. With it’s 18Gbps bandwidth and HDMI 2.0b compliance, this matrix will ensure a clear high quality image on all screens. Individual outputs can be down scaled down from 4K to 1080p using the IR remote control. Analogue and digital audio is extracted from the HDMI input signals for connecting to separate audio distribution systems.

This SC04.MX88 is suited to any installation requiring Ultra HD switching including boardrooms, classrooms, general office, retail displays, home gaming, Sky Q etc

Code: SC04.MX88

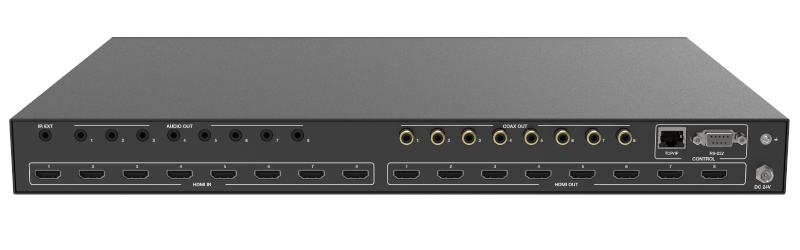

8 x 8 HDMI Matrix Switch,18G 4K/60Hz, HDR10

Features

> Switches 8 x HDMI sources to 8 x HDMI displays

> HDMI 2.0b, HDCP 2.2 / 1x

> 18Gbps Bandwidth

> Supports 4K/60Hz, RGB/YCbCr 4:4:4/YCbCr 4:2:2

> LPCM 7.1CH, Dolby True HD, DTS-HD Master Audio

> Down Scaling 4K → 1080p

> Extracts analogue and digital audio

> ARC (audio return path)

> HDR10, HDR10+, HLG, Dolby Vision

> Control: Front Panel, Infra-Red, RS232 and TCP/IP

4K/60Hz
Documents
18G
4:4:4
HDMI 2.0
HDCP 2.2
HDR10+
Gallery PRICE ENQUIRY
Scale
RS232
TCP/IP
