Specifications

Input Connectivity

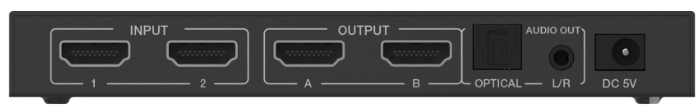

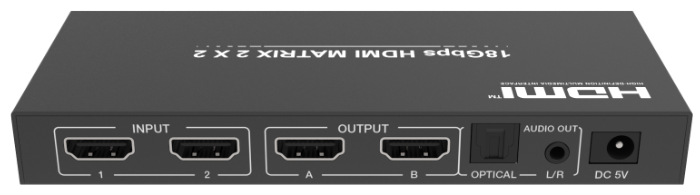

Signal: 2 x HDMI Type A, 19-Pin Female

Power: DC Jack Socket

Output Connectivity

Signal: 2 x HDMI Type A, 19-Pin Female

Audio Analogue: 3.5mm Stereo Jack (output A only)

Audio Digital: TOSLINK Optical (output A only)

Signal

Signal Input: HDMI

Standards: HDMI 2.0b, HDCP 1.X / 2.2

Bandwidth: 18Gbps

Video Resolutions: 4K/60Hz, Colour Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, HDR10

Audio: LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS, 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1

Extracted Audio: Analogue Stereo Audio and Digital TOSLINK

Power (main unit)

Type: AC to DC Mains Adaptor

Input: 100~240V AC 50/60Hz

Output: 5V/1A DC

Consumption: 2.7 Watts

Environment

Operating Temperature: -0° to 40°C

Operating Humidity: 5 to 90% RH (no condensation)

Dimensions: (W) 144 x (D) 60 x (H) 18

Weight: 208g

Colour: Black

Contents

1 x Main Unit (SC04.MX22)

1 x IR Remote Control

1 x Mains Adaptors 12V/1A

1 x Manual

Description

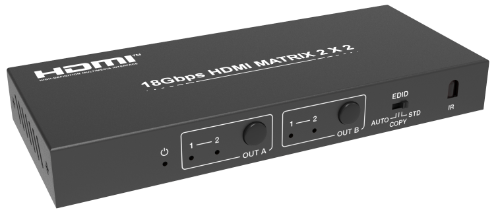

The SC04.MX22 switches any 2 HDMI inputs to any 2 HDMI outputs at resolutions up to 4K@60Hz. With IR and front panel button control, this unit will fit perfectly into any scenario where you are sharing 2 sources with 2 displays. Analogue and digital audio is extracted from output A and presented as 3.5mm stereo jack and TOSLINK optical.

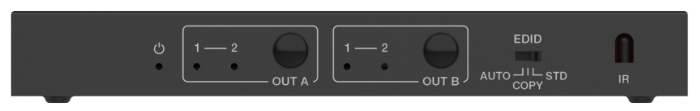

The front panel LED's make it easy to see which input is currently active at any given time. With it’s 18Gbps bandwidth and HDMI 2.0b compliance, this matrix will ensure a clear high quality image on both screens.

This SC04.MX22 is suited to any installation requiring Ultra HD switching including boardrooms, classrooms, general office, retail displays, home gaming, Sky Q etc

Code: SC04.MX22

2x2 HDMI Matrix Switch,18G 4K/60Hz, HDR

Features

> Switches 2 x HDMI sources to 2 x HDMI displays

> HDMI 2.0b, HDCP 2.2 / 1x, DVI 1.0 Compliant

> 18Gbps Bandwidth

> Supports 4K/60Hz, RGB/YCbCr 4:4:4/YCbCr 4:2:2

> Extracts Analogue PCM 2.0 and Digital Audio

> LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS

> 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1

> HDR

> Control: Front Panel and Infra-Red
