Specifications

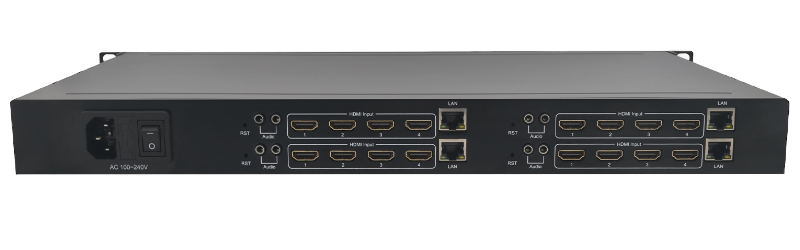

Chassis Connectivity

HDMI Input: 16 x HDMI Type A, 19-Pin Female

Ethernet: 4 x RJ45 Socket

Audio: 8 x 3.5mm Stereo Jack Socket

Power: 1 x IEC Power Inlet


Receiver Connectivity

HDMI Output: 1 x HDMI Type A, 19-Pin Female

Ethernet: 1 x RJ45 Socket

Power: 1 x DC Jack Socket


Video

HDMI Signal: HDMI

Supported Input Resolution: 8 x 1080p/60Hz, 8 x 4K/30Hz

Stream Resolution: 8 x 1080p/60Hz, 8 x 4K/30Hz

Data Rate: 0.1 Mbps ~ 32 Mbps per channel

Video FPS: 5-60FPS

Rate Control: CBR / VBR

Advanced Pre-Treatment: De-Interlacing Reduction & Sharpening


Audio

Encoding: AAC

Sampling rate: 48K/64K/96K/128K/160K/192K

Sampling precision: 24 bit

Data rate: 64Kb/s ~ 384Kb/s


System

Ethernet: 100Base-T Ethernet Interface

Protocol: RTMP, RTSP, UDP, HTTP, HLS, FLV ONVIF

User interface: Web default IP address: 192.168.1.168



Power (main unit)

Type: AC to DC Mains Adaptor

Input: 100~240V AC 50/60Hz

Consumption: 24 Watt


Power (receiver)

Type: AC-DC Mains Adaptor

Input: 100~240V AC 50/60Hz

Output: 12V/1A


Chassis Environment

Operating Temperature: -5° to 35°C

Operating Humidity: 5 to 90% RH (no condensation)

Dimensions: (W) 483 x (D) 250 x (H) 45

Weight: 5.5Kg

Colour: Black


Receiver Environment

Operating Temperature: -5° to 35°C

Operating Humidity: 5 to 90% RH (no condensation)

Dimensions: (W) 165 x (D) 88 x (H) 24

Weight: 2.5Kg

Colour: Black


Safety and Emissions: CE, FCC, RoHS

16 Channel Encoder Contents


1 x Main Unit (SC90.1116)

1 x IEC Mains Cable

1 x CD

Receiver Contents


1 x Main Unit (SC90.1015)

1 x IR Remote Control

1 x 12V/1A Mains Adaptor (No PoE)

Description

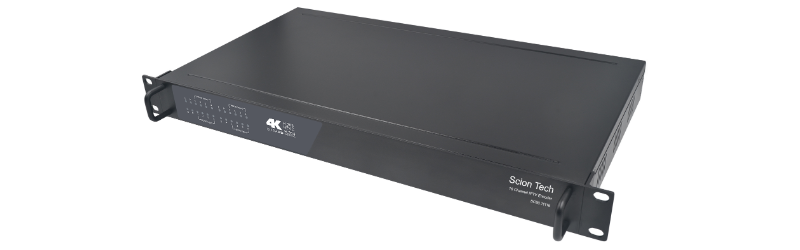

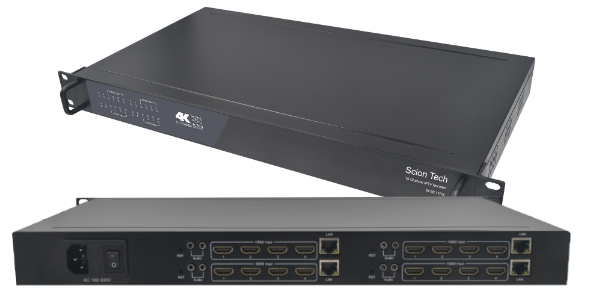

The SC90.1116 chassis houses four 4-Port encoder cards, each capable of streaming two channels at 4K/30Hz and two channels at 1080p/60Hz. HDMI inputs are encoded using H.265 with high performance video compression reducing the overall bandwidth to less than 32Mbps. The encoders are easily configured using a user friendly web browser GUI (Graphic User Interface) with no specialist programming required.


Set Top Boxes (STB) provide high definition 4K/30Hz video with a single HDMI connection and provide a user friendly, easy to use infra-red remote control. The remote can be programmed to operate the TV’s basic functions, removing the need for two remotes for general TV viewing and an editable program channel list makes it easy to select channels.


Multiple chassis can be used to create larger systems.


This system is ideal for commercial installations and provides the basic requirements for any hospitality environment.

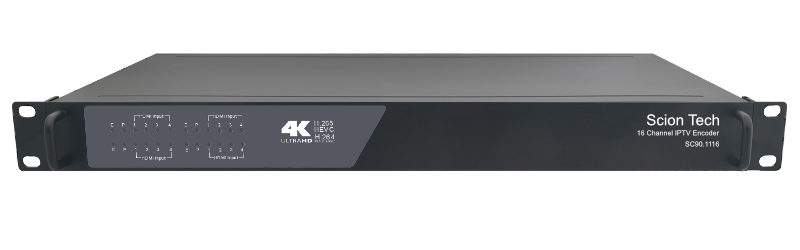

Code: SC90.1116
16 Channel HDMI Encoder, 4K

Features

> 16 Channels (HDMI) inputs

> H.265 Encoding with Embedded Hi-Linux System

> Resolutions up to 4K/30Hz, 3840 x 2160

> Web Browser user interface for easy setup

> Create / Edit channel list for easy selection

> User friendly IR remote with TV learning buttons

> Compact 1U chassis

> Free setup and software configuration

4K
Documents
16CH
H.265
16 Channel HDMI Encoder, 4K
