Specifications

Input Connectivity

Signal: 4 x HDMI Type A, 19-Pin Female

Power: DC Jack Socket

Output Connectivity

Signal: 1 x HDMI Type A, 19-Pin Female

Signal

Input: HDMI

Standards: HDMI 2.0b, HDCP 2.2/1.4

Bandwidth: 18Gbps

Video resolution: Up to 4K/60Hz

Colour space: RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0, HDR10

Colour depth: 8/10/12-bit

HDMI Audio: LPCM, Dolby Digital/Plus/EX, Dolby True HD™, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio™, DSD

Power (main unit)

Type: AC to DC Mains Adaptor

Input: 100~240V AC 50/60Hz

Output: 5V/1A DC

Maximum Consumption: 2W

Environment

Operating Temperature: 0° to 40°C

Storage Temperature: -20° to 60°C

Operating Humidity: 5 to 90% RH (no condensation)

Dimensions: (W) 182 x (D) 84 x (H) 16

Weight: 370g

Colour: Black

Contents

1 x Main Unit (SC03.1041A)

1 x IR Remote Control

1 x Mains Adaptors 5V/1A

1 x Manual

Description

This compact switch allows you to connect four high definition sources to a single HDMI port on your TV or projector and then switch between them using the front panel buttons or infrared remote.

The switch supports transfer rates of 18Gbps and is capable of passing the most premium 4K/60Hz 4:4:4 content, whilst passing CEC and eARC via input 1. Selectable EDID management for (Auto/2.0CH/5.1CH.7.1CH).

The switch is compatible with 1080p and 4K HDMI devices, such as SkyQ, Apple TV, Xbox One, TV Stick, PS3/PS4, Blu-Ray, DVD, Roku, Tivo and more.

4x1 HDMI Switch, 18Gbps, 4K/60Hz, YUV 4:4:4, HDR, ARC

Code: SC03.1041A

Features

> Switch 4 HDMI inputs to 1 HDMI output

> HDR, HDR10, HDR10+ and Dolby Vision

> Up to Dolby Atmos, DTS, DTS-EX, DTS-96/24 and more….

> Bandwidth: 18Gbps

> Supports 4K/60Hz with 24-bit RGB/YCBR 4:4:4

> Any eARC / ARC and Soundbar

> Auto and Manual Switching on all inputs

> Enhanced EDID Management

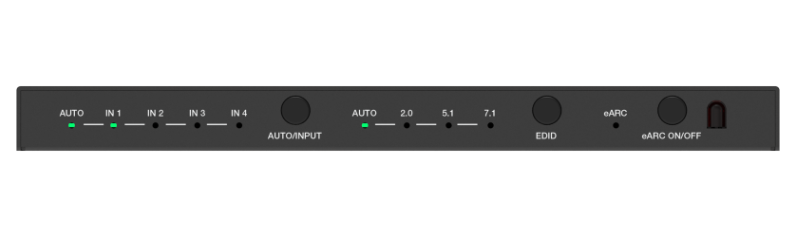

> Front panel switch and IR for input selection
