Specifications

Input Connectivity

Signal: 4 x HDMI Type A, 19-Pin Female

IR Senders: 5 x 3.5mm Jack Socket

Audio: 4 x 3.5mm Jack Socket

RS232: 1 x 3-Pin Phoenix Terminal

Ethernet: 1 x RJ45 Socket

Power: 1 x 2.1 DC Jack

Output Connectivity

CAT5e/6: 4 x RJ45 Socket

Mirrored HDMI: 4 x HDMI Type-A, 19-Pin Female

IR Emitters: 5 x 3.5mm Jack Sockets

Audio: 4 x 3.5mm Jack Sockets

Signal

Signal Input: HDMI

Bandwidth: 18Gbps

Standards: HDMI 2.0, HDCP 2.2

Video Resolutions: 4K/60Hz, YUV 4:4:4

Distance: 70m @ 4K over CAT5e/6

HDMI Audio: DTS-5.1, Dolby 5.1

Analogue Audio: PCM 2.0CH

IP Control: Ethernet 10/100

RS232: Full Duplex

IR: Matrix control and source control from receivers

Power (main unit)

Type: AC Mains Adaptor

Input: 100~240V AC 50/60Hz

Output: 12 Volt 4 Amps

Consumption: 23 Watts

Receiver Power: PoC (power over cable) from Matrix

Environment

Operating Temperature: -5° to 35°C

Operating Humidity: 5 to 90% RH (no condensation)

Dimensions: (W) 440 x (D) 163 x (H) 44

Receiver Dimension: (W) 110 x (D) 68 x (H) 13

Weight: Matrix 2.7Kg, Receiver 190g

Colour: Black

Safety and Emissions: CE, FCC, RoHS

Contents

1 x Main Unit (SC40.SMX44)

4 x Receivers

1 x IR Remote Control

9 x IR Sender Cable

9 x IR Emitter Cable

5 x 3 Pin Phoenix Terminals

1 x Mains Adaptor 12V/4A

1 x Set of Rack Ears

1 x CD

Description

The SC40.SMX44 matrix is packed with many features and delivers stunning Ultra HD video up to 70m over CAT5e/6 cable. Each HDMI source and accompanied IR signal can be routed to any display simultaneously. The CAT5e/6 output has a mirrored HDMI output which can be used for recording or simply connecting additional displays.

In addition to the HDMI mirrored outputs the matrix also provides separate switched analogue audio outputs for connecting to amplifiers supplying audio via a separate sound system. The receivers are (PoC) powered over the CAT5e/6 cable so there’s no need for additional power adaptors behind the screens. The receivers can be connected up to 70m from the matrix and still provide zero latency, seamless switching all at 4K/60Hz.

The integral video wall functions provide up to 7 different modes and can be cascaded for larger projects. Each video out put is made up of 4 layers enabling all 4 inputs to be displayed on a single screen with multiple segmented options.

Bi-Directional IR is provided for controlling the source devices from the remote locations and controlling the screens from the matrix. Each zone simply selects the required input using the IR remote control provided and then uses the third party remote control to control the source device. These IR signals are routed with the HDMI signal eliminating any possibility of controlling two devices at the same time.

The matrix also has local control using either IR, the front panel buttons, RS232 and web browser making it easy to link up with third party smart home controllers such as RTL, Crestron, Control4 and more. Our SC40.SMX44 matrix supports the latest industry standards including HDMI 2.0 HDCP 2.2, 4K/60Hz, YUV 4:4:4 and comes with a 2 years manufactures warranty. The package includes 4 x receivers and all the IR transmit and receiver cables needed to complete your installation.

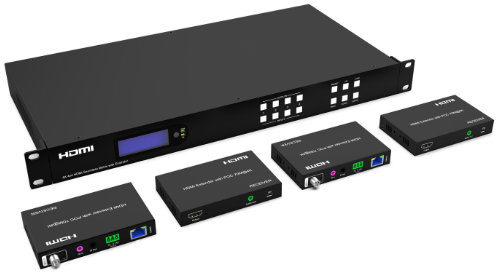

Code: SC40.SMX44

4x4 HDMI over CAT5e/6 Matrix Switch, 70m

Features

> 4 x 4 HDMI (HDBaseT) Matrix

> 4 x CAT5e/6 outputs and Mirrored HDMI outputs

> Supports resolutions up to 4K@60Hz, YUV 4:4:4

> HDMI 2.0 and HDCP 2.2 Compliant

> Video Wall and Multi-View

> Embedded and De-Embedded Audio

> Bi-Directional IR and Full Duplex RS232

> Control: Local and Remote End IR, RS232, LAN/IP

> PoC Receivers are powered by matrix over CAT5e
