DESCRIPTION
This 18Gbps Extender extends high definition video, audio, bi-directional IR, RS-232 and USB 2.0 for KVM. The supported transmission distance is up to 40 meters for 4K@60Hz 4:4:4 resolution and 70 meters for 1080P/60Hz resolution between transmitter and receiver over a single CAT5e/6 cable.
The transmitter supports local audio extraction, bi-directional IR pass-through for controlling both source and display devices. It also supports PoC (power over cable).

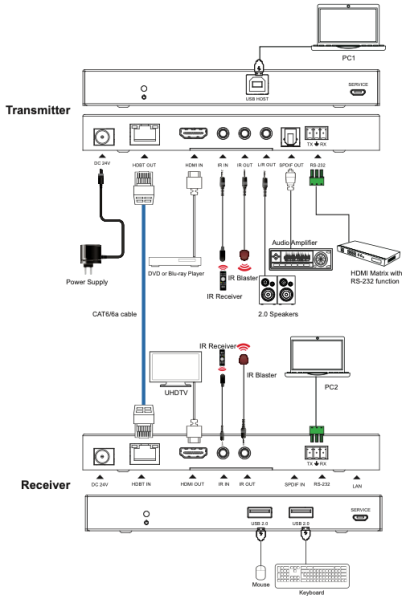

The extender includes two units, transmitter and receiver. The transmitter captures the incoming signals and transmits them over one cost effective CAT5e/6 cable. The receiver unit receives the signals and presents them as outputs for connecting to your devices.
This extender offers the most convenient solution for HDMI extension via a single CAT5e/6 with long distance capability, and is the perfect solution for any application.
HDBaseT Extender, 4K, 70m with ARC and USB
FEATURES
- Extends 1080p@70m and 4K@40m
- Supports resolutions up to 4K/60Hz YUV 4:4:4
- HDMI 2.0b, HDCP 2.2, 3D and CEC compatible
- Real time uncompressed with zero latency
- LPCM, Dolby Digital™, DTS Digital Surround Sound™
- Supports USB 2.0
- Full Duplex RS232
- Bi Directional IR path
- PoC (power over cable), Receiver is powered over CAT5e/6
SPECIFICATIONS
Transmitter Connectivity
HDMI Input: 1 x HDMI Type A, 19-Pin Female
Signal Output: 1 x RJ45 Socket
Digital Audio: SPDIF Optical
Analogue Audio: 3.5mm Stereo Jack Socket
RS232: 1 x 3 Pin Phoenix Terminal
USB: 1 x USB-B, 4-Pin Female
IR Output: 1 x 3.5mm Jack Socket
IR Input: 1 x 3.5mm Jack Socket
Service: 1 x Mini USB (firmware update only)
Power: 1 x DC Jack
Receiver Connectivity
Signal Input: 1 x RJ45 Socket
HDMI Output: 1 x HDMI Type A, 19-Pin Female
Digital Audio: 1 x SPDIF Optical
RS232: 1 x 3 Pin Phoenix Terminal
USB: 2 x USB-A, 4-Pin Female
IR Output: 1 x 3.5mm Jack Socket
IR Input: 1 x 3.5mm Jack Socket
Service: 1 x Mini USB (firmware update only)
Power: 1 x DC Jack
Signal
HDMI Input: HDMI 2.0b / DVI 1.0
HDCP Compliance: HDCP 2.2 / HDCP 1x
Video Resolutions: Up to 4K 50/60Hz 4:4:4
Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Colour Depth: 8-bit, 10-bit, 12-bit, [1080p, 4K/30Hz, 4K/60Hz (YCbCr 4:2:0)], [8-bit 4K/60Hz (YCbCr 4:4:4)]
HDMI Audio Formats: PCM 2.0 / 5.1 / 7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS HD Master Audio, DSD
HDR Formats: HDR10, HDR10+, Dolby Vision
Distance: 70m/1080p and 40m/4K
Analogue Audio: PCM 2.0
Infra-Red: IR Frequency: 30KHz 50 56KHz (940nm)
RS232: Full Duplex
USB: USB 2.0, Transmission rate up to 480mb/s
Power
Type: AC to DC Mains Adaptor
Input: 100~240V AC 50/60Hz
Output: Transmitter only 12V/1A
Consumption: 13 watt
Environment
Operating Temperature: -0° to 40°C
Storage Temperature: -20° to 60°C
Operating Humidity: 20 to 90% RH (no condensation)
Transmitter Dimensions: (W) 165 x (D) 88 x (H) 20
Receiver Dimension: (W) 165 x (D) 88 x (H) 20
Weight: Transmitter 170g and receiver 165g
Colour: Black
Safety and Emissions: CE, FCC, RoHS
CONTENTS
1 x Transmitter
1 x Receiver
1 x IR Sender cable (1.5m)
1 x IR Receiver cable (1.5m)
2 x 3 Pin phoenix terminal
1 x Power supply 12V/1A
4 x Mounting Ears
1 x Manual
Code: SC05.8070U
